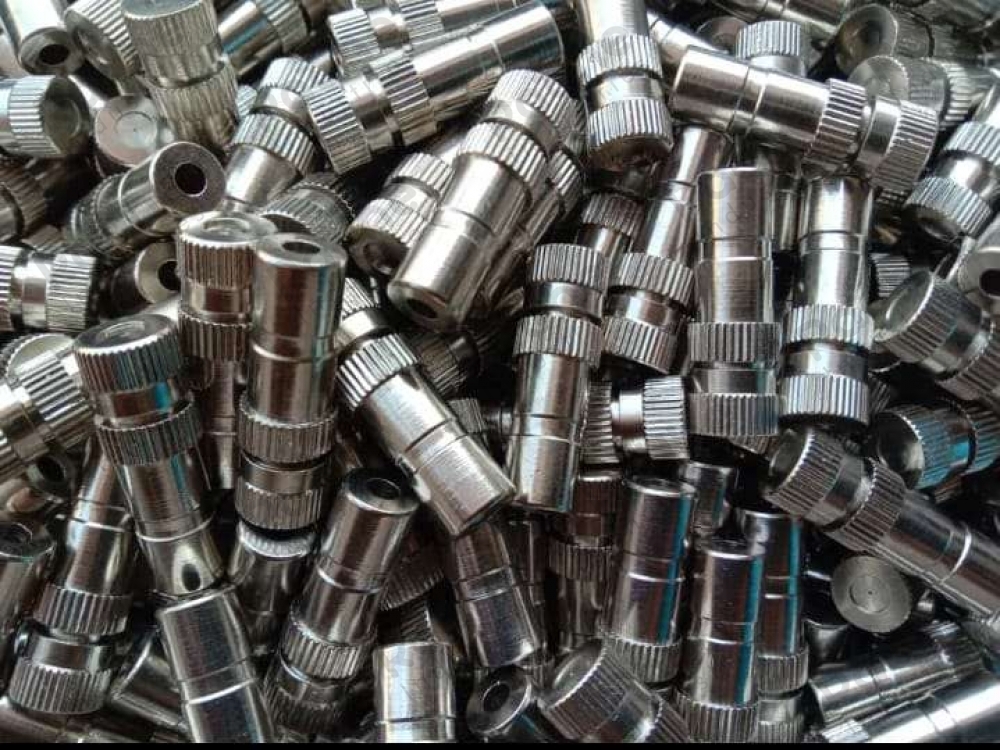

Mist Nozzel

We offer the latest cleanable nozzle design with 3/16 BSW threads and 6mm and 8mm pipe sizes. Buy direct from the manufacturer. Mist nozzles are available in ni-plated brass and stainless steel. We also offer a variety of other nozzle designs as special order items with different orifice sizes.

TECHNICAL PARAMETER

• Orifice Dia: 0.3mm
• Pressure: 3-15 bar
• Flow rate: 80-145 ml/min
• Spray angle: 50-60 degree
• Droplet size: 20-60 micron
• Material: brass
• Color: silver nickel plating

CONNECTION SIZE DETAILS

• 6mm slip lock
• 8mm slip lock
• 3/16 BSW thread

KEY FEATURES

• hardened material orifice & rotor
• special spring, O-ring & special drip valve
• specially design orifice & rotor for dry mist spray
• smooth finished & anti-corrosion nickel plating
• rust free long life mist spray
• used for atomizing cold fog, disinfection tunnel
• quick connection nozzle with 6mm, 8mm, or thread connection
